Assembly and toque measurement. Why does it matter?

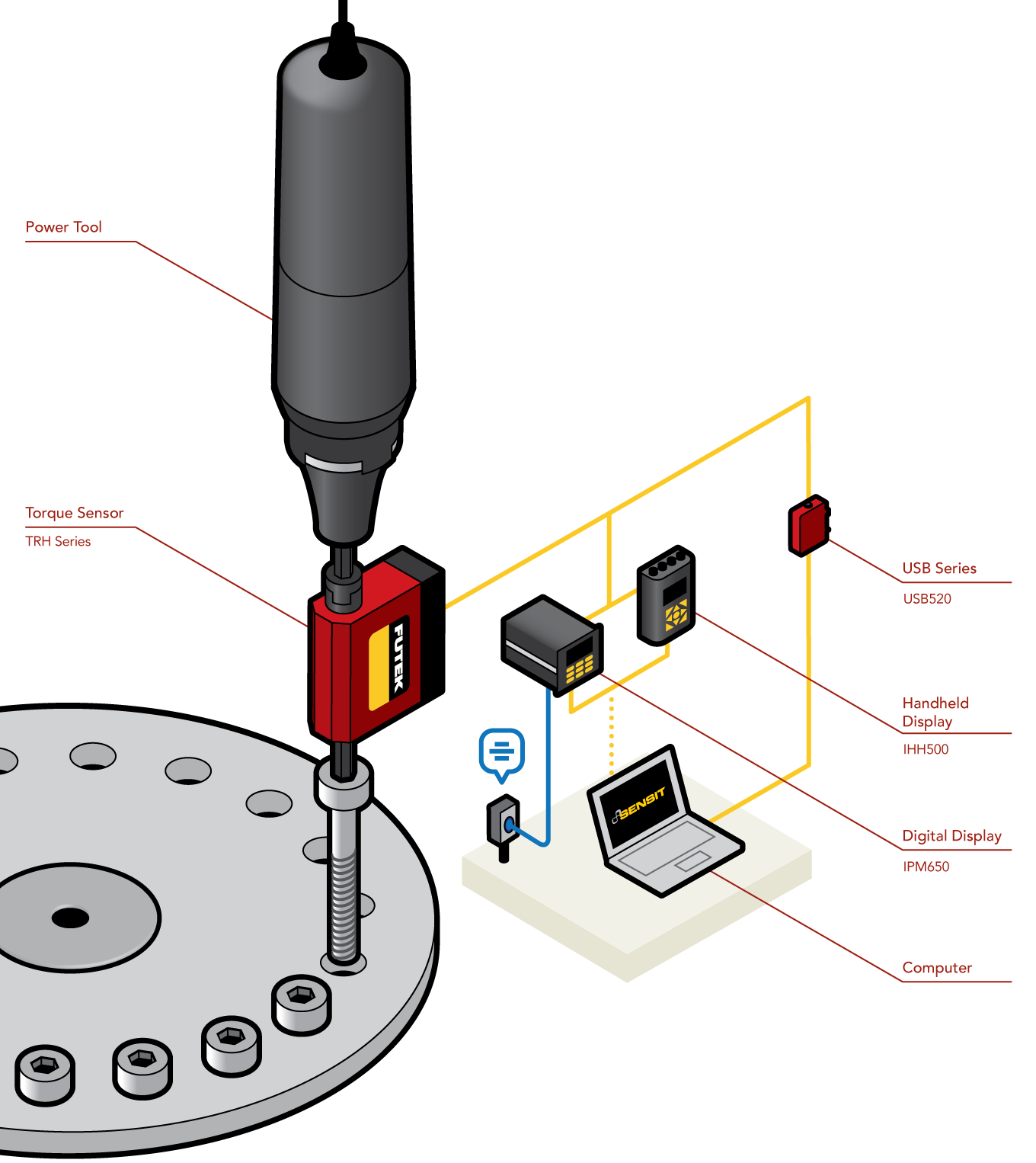

In some critical assembly lines, the operator needs to monitor the actual torque being applied on fasteners. This is even more important for electric and pneumatic assembly tools. The most appropriate torque measurement tool is the rotary torque sensor (aka dynamic torque sensor), which can be installed between the assembly application and an electric/pneumatic power tool. Engineers and production managers can then obtain dynamic torque measurement data, which will highlight the amount of torque that is applied from the tool to the bolt or fastener.

FUTEK torque sensors offer a reliable method to ensure your assembly torque measurement is accurate. These measuring tools can be used as an assembly tool, but are best used as a quality control instrument to verify and monitor torque.

Similar to load cells and force sensors, rotary torque sensors will go out of calibration with extended use. FUTEK recommends annual calibration for our products to keep the sensor's measurement accuracy. Regular recalibration also guarantees measurement consistency and adherence to industry standards.


Hex-Drive Rotary Torque Sensors are typically used to verify screw spindles and torque of power-driven tools (torque measurement tool).
