PLC to Orbit® Interface                                                                                      Technical Spec

Digital Measurement Orbit Modules and Gateways

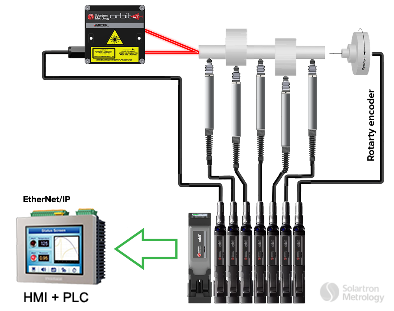

PLC to Orbit® Interface
  •  Ethernet /IP
  •  ProfiNet
  •  Modbus TCP
  •  Modbus RTU
  •  Ethercat


CC Link - New Protocol Interface Module (PIM)Interface                                Technical Spec

CC Link

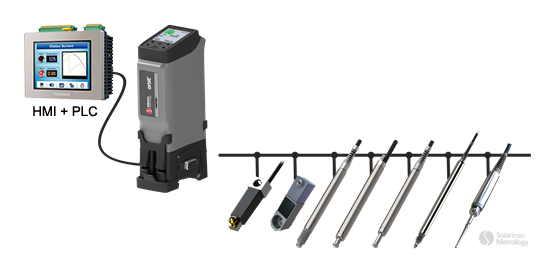

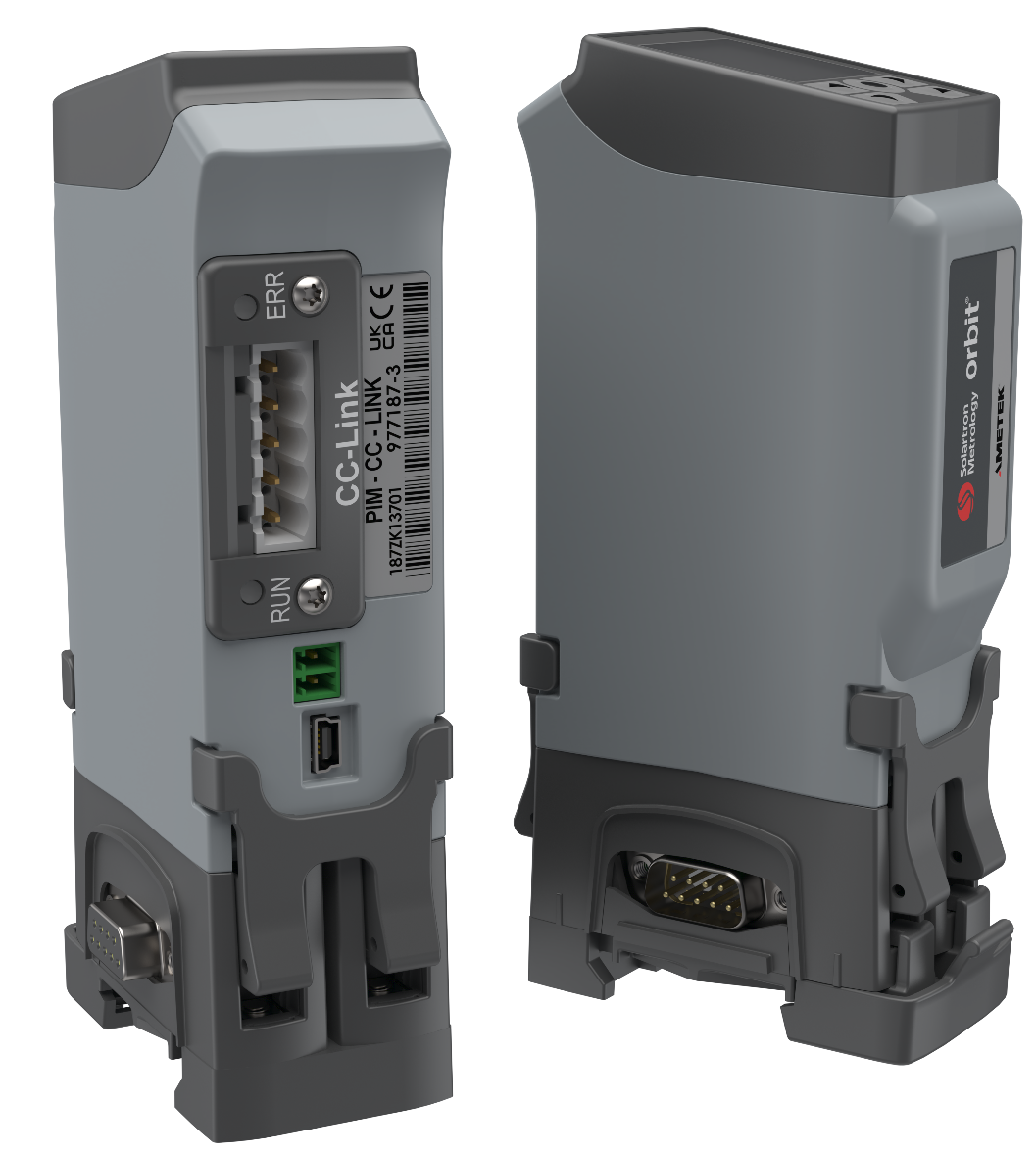

CC Link - New Protocol Interface Module (PIM)
  •  Communicate with up to 64 Orbit modules with Explicit Messaging
  •  Power up to 10 Orbit modules (depending on type). (A PSIM can be used when more than 10 is required)
  •  Connect any Solartron Digital sensor including lasers
  •  Connect 3rd party sensors via the Analog


Modbus RTU Module                                                                                          Technical Spec
Ethernet IP Module
Modbus TCP™ Module
  •  Simple interface between Orbit® and PLC using ModbusTCP
  •  Conformance tested
  •  Cyclic and Implicit Data

Digital Measurement Orbit Modules and Gateways


Modbus TCP Module                                                                                           Technical Spec
Ethernet IP Module
Modbus TCP™ Module
  •  Simple interface between Orbit® and PLC using ModbusTCP
  •  Conformance tested
  •  Cyclic and Implicit Data

Digital Measurement Orbit Modules and Gateways



PLC Interface EtherNet IP Module                                                                     Technical Spec
Ethernet IP Module

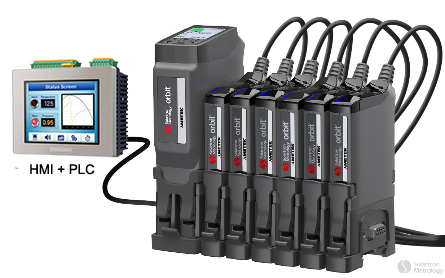

PLC Interface: EtherNet/IP™ Module
  •  Ethernet IP Module
  •  Simple interface between Orbit® and PLC using Ethernet/IP
  •  ODVA conformance tested
  •  Cyclic and Explicit Data

Digital Measurement Orbit Modules and Gateways


PLC Interface: EtherCat™ Modules                                                                   Technical Spec
Ethernet IP Module

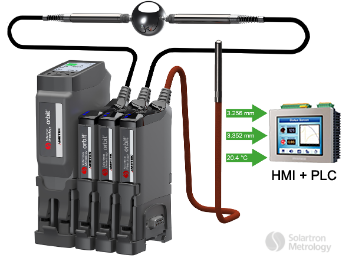

PLC Interface: EtherCat™ Module
  •  Simple interface between Orbit® and PLC using EtherCat
  •  Conformance tested
  •  Explicit and Implicit Data

Digital Measurement Orbit Modules and Gateways


PLC Interface: ProfiNet® Module                                                                       Technical Spec
Ethernet IP Module
PLC Interface: ProfiNet® Module
  •  Simple interface to any ProfiNet® enabled PLC
  •  Conformance Tested

Digital Measurement Orbit Modules and Gateways
