Description

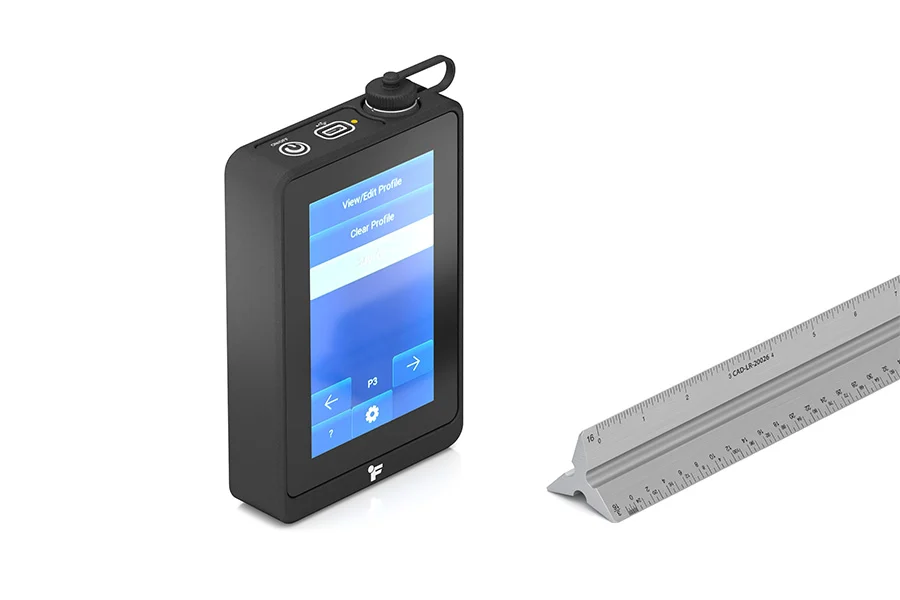

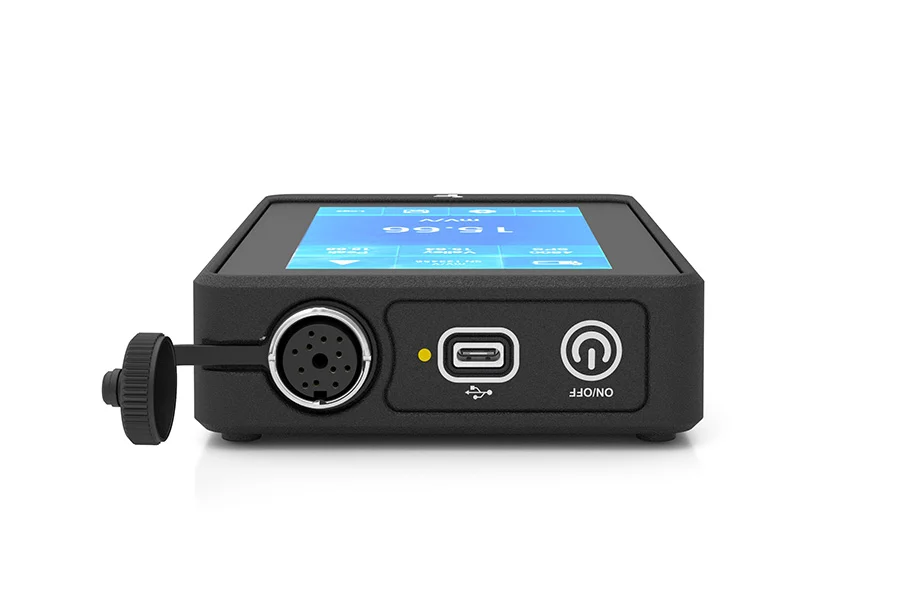

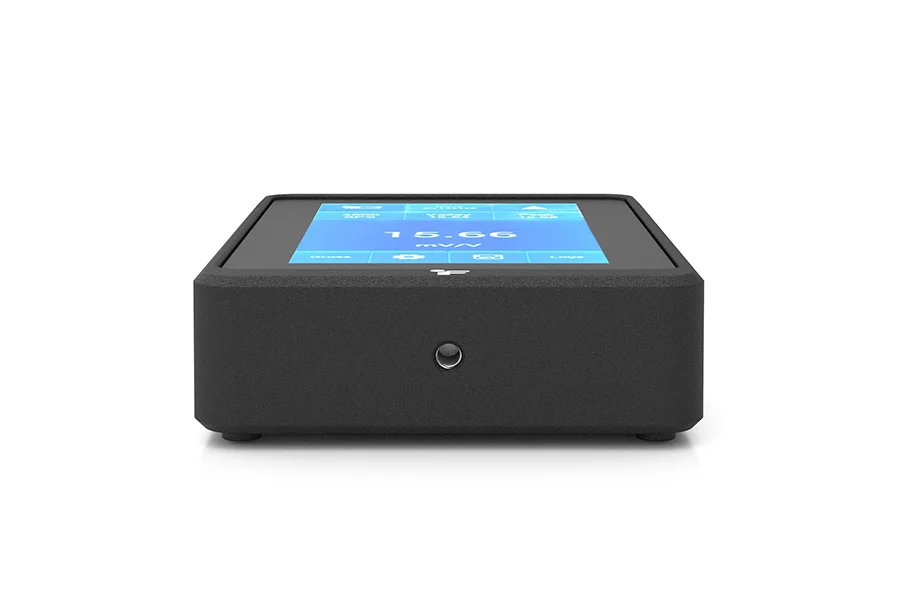

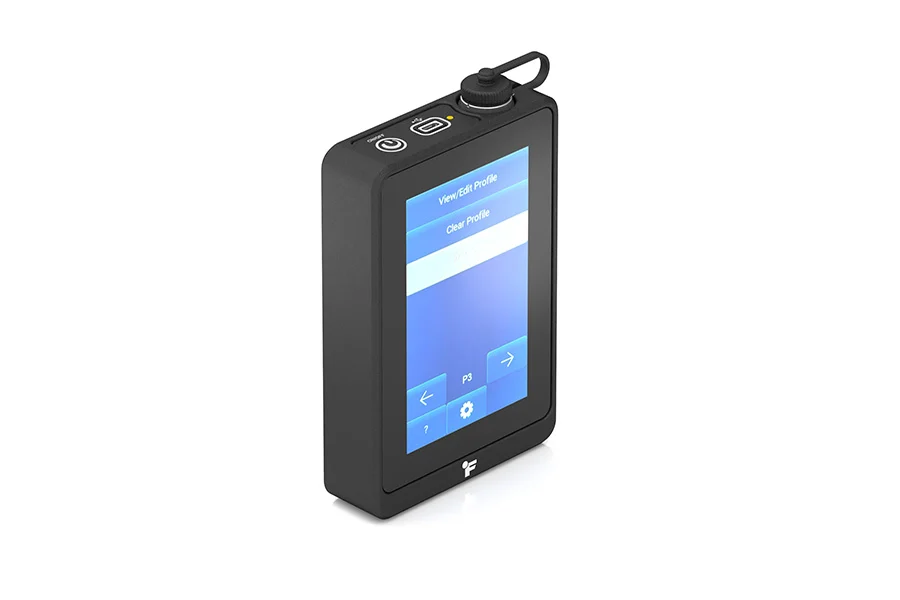

The SensLog is the latest advancement in FUTEK’s IHH line—a high-performance,battery-powered handheld display engineered for precise measurement and supports multiple input types for broad sensor compatibility (mV/V, mA, and VDC). Its large internal memory of up to 40 million storage points allows for extended data logging and in-depth post-process analysis. Built for demanding environments, the SensLog delivers reliable performance in research, testing, and industrial applications. FUTEK’s ISO-certified calibration lab ensures precision and compatibility across a range of sensors. The IHH505 Pro supports 3 fixed and 13 user-definable calibration profiles, along with universal unit conversion for load, torque, pressure, temperature, and displacement—offering flexibility, accuracy, and simplified data interpretation.


Features
  • Wide Range of Sensor Inputs: Up to ±16 mV/V, up to ±12 VDC, and up to 30 mA.
  • High-Speed Sampling Rate: Up to 4,800 SPS for static and dynamic measurement
  • Noise-Free Resolution: Up to 20 bits (±5 mV/V), up to 18.8 bits (16 mA), and up to 21.4 bits (±10 VDC)
  • Large Storage Capacity: Stores up to 40 million data points across 16 logs
  • Fault-Detection Capabilities: Open/short circuit detection, temperature out-of-range warnings, low memory warnings, and 24V on-board supply warning with automatic cutoff to protect the device
  • Protection Features: Built-in ESD and active over-voltage/over-current protection

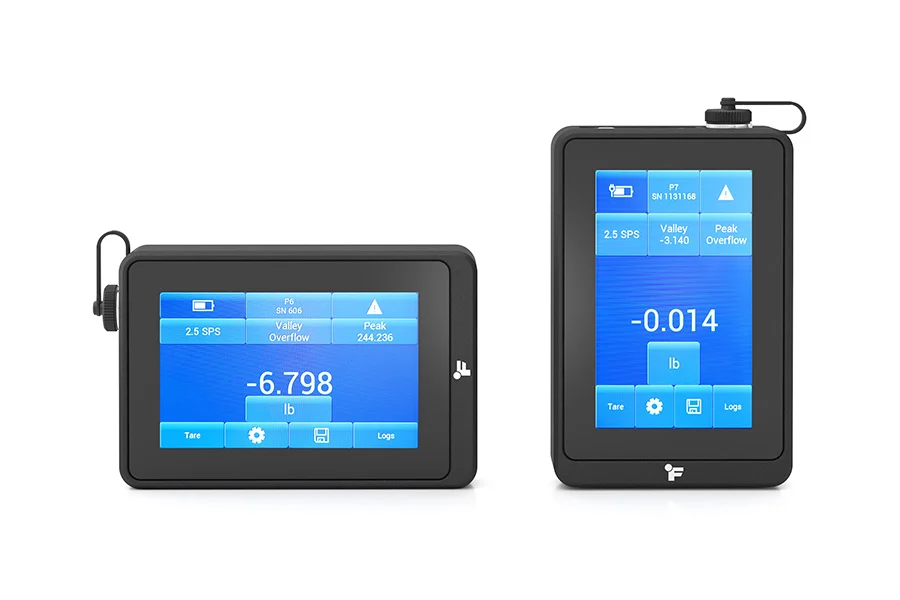

  • High-Visibility, Durable Display: Optically bonded 5” Gorilla Glass capacitive touch IPS display (800 × 480 px)
