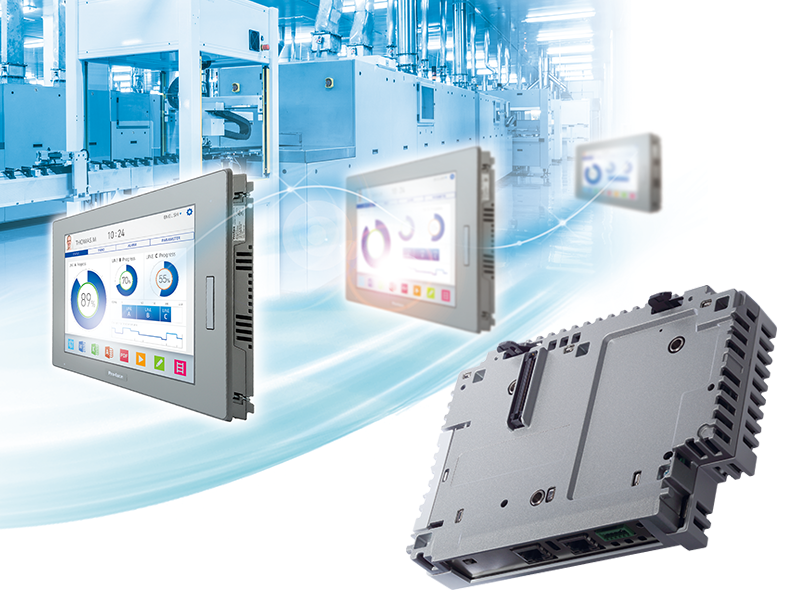

Ethernet-Connected Flat Panel adapted for an Industrial Environment

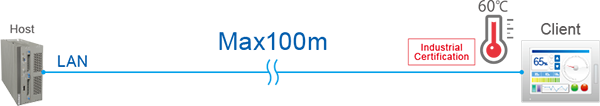

Separate installation across long distances with a single LAN cable
Well-adapted to production environments, reliable and easily installed.
Select Display Mode

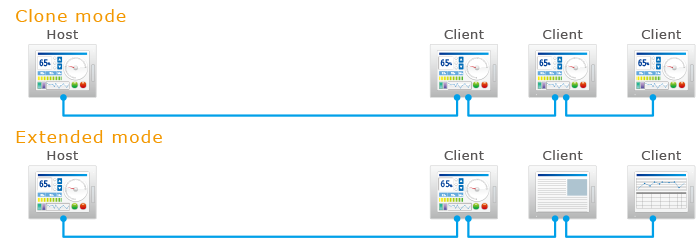

Compatible with cloned or extended display mode. Independent monitoring and operation on each panel is possible.
Exclusive Control of Touch Input
Prevent trouble due to unintended simultaneous operation by multiple users.
* Use of this exclusive control is limited to a specific host machine.
Peace of mind in a harsh environment. "Coated model" features more protection from corrosion.
With a coated model of SP5000 Series display module, extended product lifetime for use in harsh environments compared to uncoated products. Corrosion resistance is also improved.
(Model No.: PFXZCDADEXR1F0C)
System Configuration
* MDA: Multi Display Adapter (Model No.: PFXZCDADEXR1, Coated Model No.: PFXZCDADEXR1F0C)
Specifications
Electrical Specifications
Model
PFXZCDADEXR1
Power supply
Rated input voltage
12Vdc (Supplied by the Display Module)
Power consumption
8W or less
Environmental Specifications
Model
PFXZCDADEXR1
International safety standards
Physical environment
Surrounding air temperature
0 to 60 °C (32 to 140 °F)
Surrounding air and storage humidity
10 to 90% RH (non-condensing, wet bulb temperature 39 °C [102.2 °F] or less)
Dust
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree
For use in Pollution Degree 2 environment
Corrosive gases
Free of corrosive gases
Atmospheric pressure
(operating altitude)
800 to 1,114 hPa (2,000 m [6,561 ft] or lower)
Mechanical environment
Vibration resistance
IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm (0.14 in)
9 to 150 Hz fixed acceleration: 9.8 m/s2
X, Y, Z directions for 10 cycles (approximately 100 minutes)
Shock resistance
IEC/EN 61131-2 compliant
147 m/s2, X, Y, Z directions for 3 times
