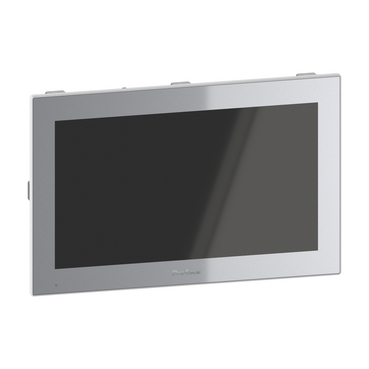

Proface Web Panel GPW6000 Screen 15"W FHD Touch PCAP 12-24VDC power



PFXGP6740WCDW



Main
Product or component type
Touch panel screen
Complementary
Display size
15 inch
Display type
Colour TFT LCD
Display colour
16 million colours
Display resolution
1920 x 1080 pixels full HD
Touch panel
Multi-touch projected capactive technology (PCT)
Backlight lifespan
50000 hours with white
Input voltage limits
10.8…28.8 V DC
Rated short-duration power frequency withstand voltage
1000 V AC during 1 min
Local signalling
Status LED green, steady for operating
Memory description
Built in flash memory 4 GB
[Us] rated supply voltage
12...24 V DC
Inrush current
30 A
Maximum power consumption in W
31 W maximum
Processor frequency
1600 MHz
Memory description
Backup memory NVRAM 512 KB
Type of cooling
AN (air natural)
Integrated connection type
2 USB 2.0 port USB type A 2 10/100/1000 BASE-TX
SD card slot
Electrical connection
Cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Fixing mode
Panel mounting
Mounting on 1.6...5 mm thick panel
Cut-out dimensions
394 x 250 mm panel cut dimension
Width
408 mm
Height
264 mm
Depth
64 mm
Product weight
5.3 kg
Environment
Product certifications
CE
UKCA
KC
RCM
cULus
cULus Class 1 Division 2
ATEX zone 2/22
IECEx zone 2/22
UKEX
KCS
CCC Ex
EU-RO MR
DNV
CCS
NK
RoHS
REACH
WEEE
Standards
EN 61000-6-4
EN 61000-6-2
EN 61131-2
UL 61010-2-201
CSA C22.2 No 61010-2-201
UL 121201
CSA C22.2 No 213
Directives
2014/35/EU - low voltage directive
IP degree of protection
IP67f (front panel (in enclosure)) conforming to UL 50
Ambient air temperature for storage
-20…60 °C
Relative humidity
10…90 % non condensing
Storage Relative Humidity
10…90 % non condensing
Operating altitude
2000 m
Pollution degree
2
Environmental characteristic
Corrosive gas free
Vibration resistance
3.5 mm (f = 5…9 Hz) - single amplitude - conforming to IEC 61131-2
Shock resistance
147 m/s² (X, Y, Z directions for 3 times) conforming to EN/IEC 61131-2
Insulation resistance
> 10 MOhm
Electromagnetic compatibility
Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
42.6 cm
Package 1 Width
14.3 cm
Package 1 Length
49.4 cm
Package 1 Weight
6.5 g
Unit Type of Package 2
S06
Number of Units in Package 2
5
Package 2 Height
73.5 cm
Package 2 Width
60 cm
Package 2 Length
80 cm
Package 2 Weight
43.8 kg
Recyclability potential, in %
53
Total lifecycle Carbon footprint
1 024 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]
203 kg CO2 eq.
Carbon footprint of the distribution phase [A4]
9 kg CO2 eq.
Carbon footprint of the installation phase [A5]
0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]
801.3643185284956
Carbon footprint of the use phase [B2, B3, B4, B6]
801 kg CO2 eq.
Mercury free
Yes
Sustainable packaging
No
Carbon footprint of the end-of-life phase [C1 to C4]
10.499996170422422
Carbon footprint of the end-of-life phase [C1 to C4]
10 kg CO2 eq.
Environmental Disclosure
Total lifecycle Carbon footprint
1024
F-gas free
Only air and vacuum used for insulation / breaking, no F-gas including SF6
Average percentage of recycled metal content
91 %
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
SCIP Number
B156dc75-1dcf-4080-9769-a433fc086f1b
REACh Regulation
EU RoHS Directive
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
Removable battery
User replaceable
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Dimensions Drawings
External Dimensions (19-inch Wide Advanced Model)

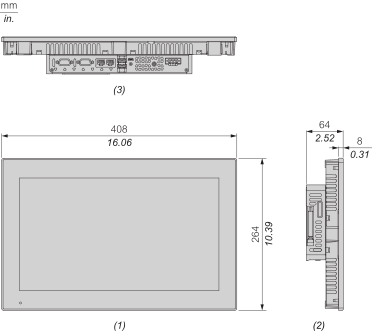

External Dimensions

(1) : Front
(2) : Left
(3) : Bottom

Installation Fastener
Mounting and Clearance
Mounting
Panel Cut Dimensions


Installation Requirements

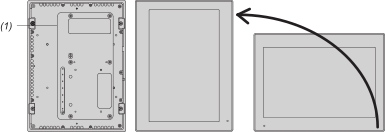

1 : Power connector


Mounting Angle


Clearance
